Military and commercial fuel ground support equipment — refuellers from 5,000 to 25,000 L and hydrant dispensers, engineered to EI 1581 5th Edition, JIG, ATA-103 / NFPA-407 and EN 12312-5. Jet A, JP-8, JP-8+100 and Avgas capable.
Available in multiple tank geometries and chassis options to match operational requirements — from truck-mounted units to full semi-trailer configurations.

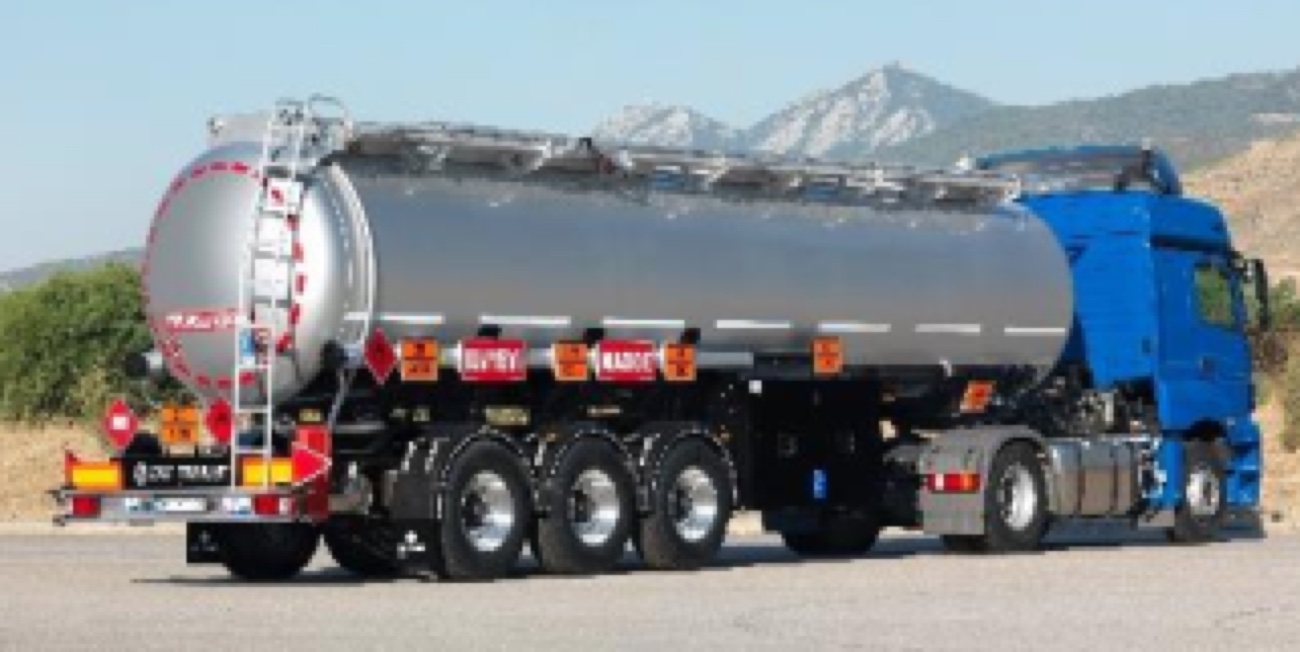

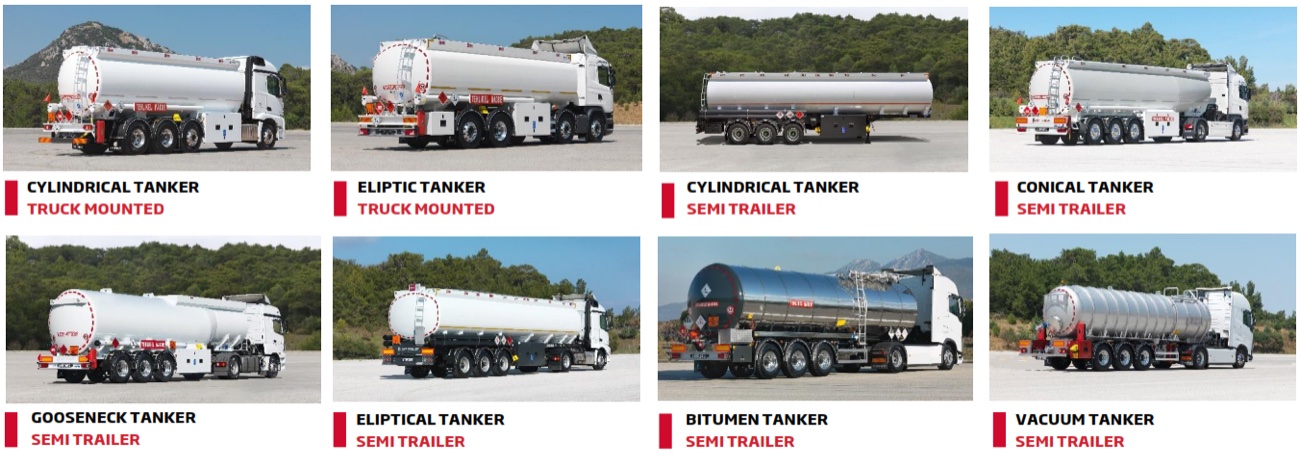

Cylindrical · Elliptic · Conical · Gooseneck · Bitumen · Vacuum — truck-mounted & semi-trailer

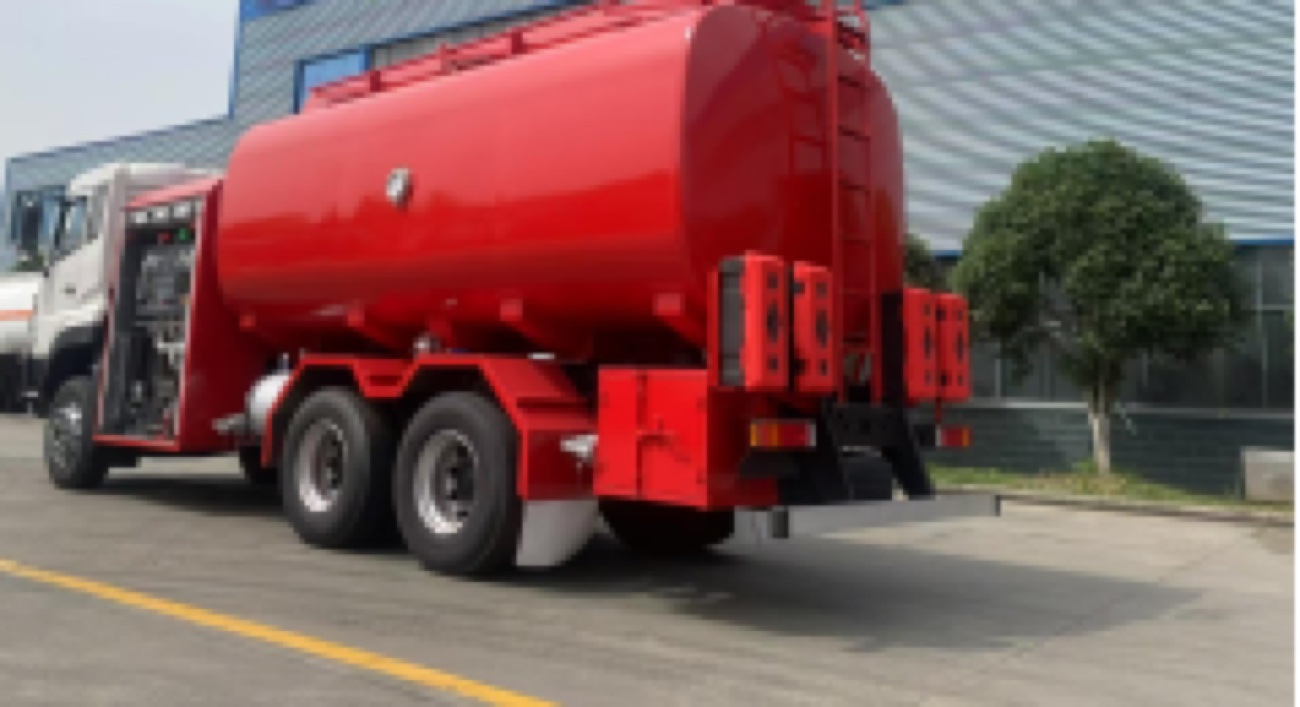

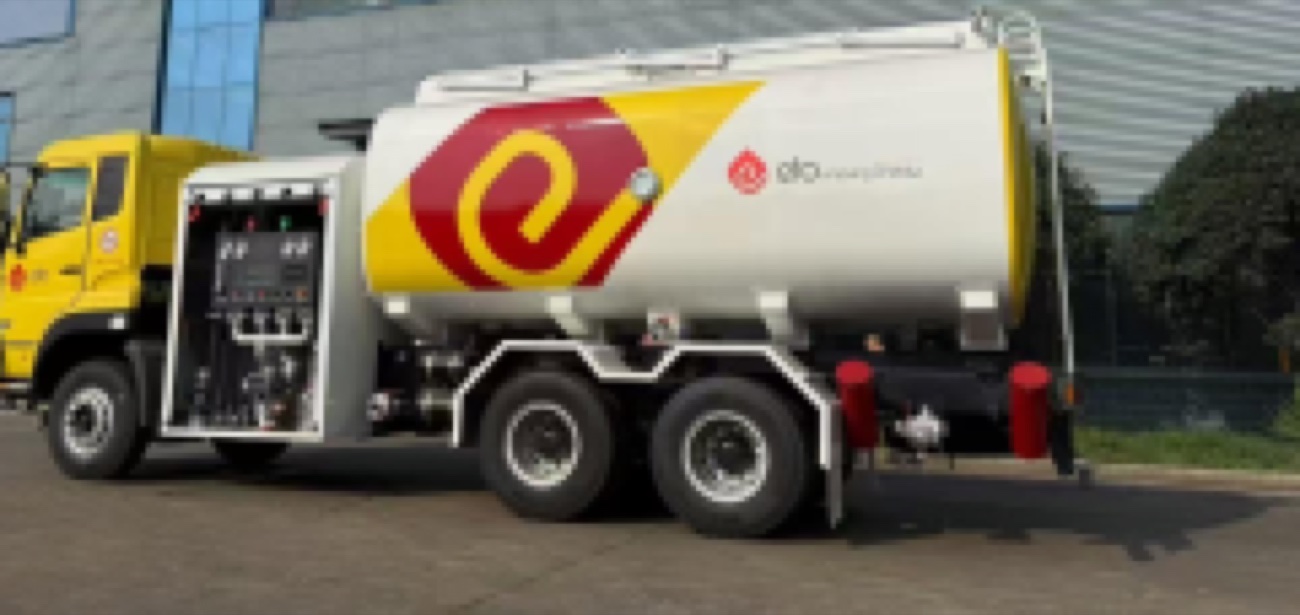

Purpose-built aviation refuelling vehicles for regional airports, military forward operating bases, and FBO operations. Aluminium alloy tanks on all-terrain diesel chassis.
| Parameter | Specification |
|---|---|
| Tank capacity | 5,000 – 25,000 L |
| Tank material | Aluminium alloy AW5454 / AW5182, min. 5 mm wall |
| Chassis | 6×4 all-terrain, Euro VI / Tier 4F diesel, 6-cyl |
| Underwing hose | DN63 / 2.5″, 23 m, HEPCV nozzle |
| Overwing hose | DN38 / 1.5″, 30 m, pistol nozzle |
| Flow meter | ±0.2% accuracy, 5-digit reset + 7-digit totaliser |
| Working pressure | Up to 10.5 bar |
| Dimensions (L×W×H) | ~8,500–9,000 × 2,500 × 3,200 mm |
| GVW / payload | ~22,000 kg / ~10,000 kg |
| Fuel types | Jet A, JP-8, JP-8+100, Aviation Gasoline |
| Support | 12-month warranty; 10-year spares availability; training |

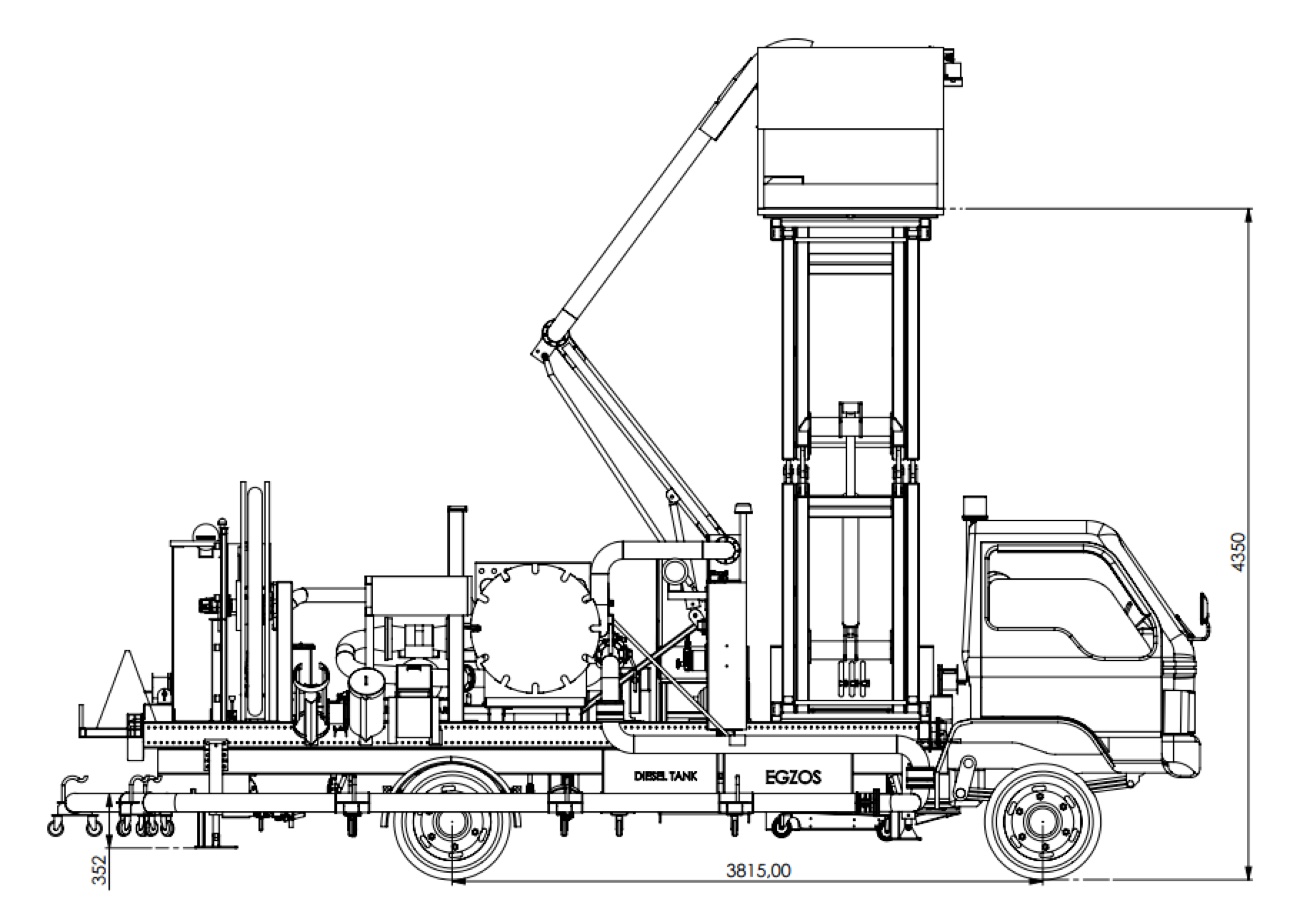

Two-axle diesel rigid-chassis hydrant dispenser servicing wide-body and standard aircraft via two deck hoses and one reel hose.

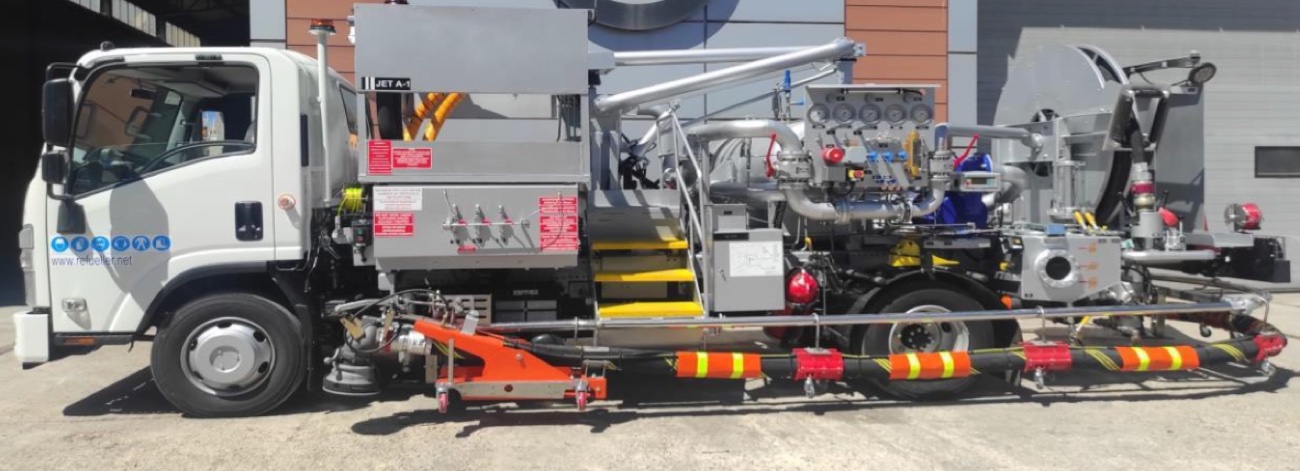

Jet A-1 hydrant dispenser — filter/separator, flow meters and reel hoses
Tell us the configuration, capacity and quantity and we’ll respond quickly with pricing and lead time. You can also email info@eliorantech.com directly.
